Monoblokové horáky s tlakovým rozprašovaním

  • Pressure atomisers are used in any industrial application with high demands to emission rates during the combustion of natural gas, light fuel oil (LFO), fuel oil M, and special fuels like biogas.
  • During gas operation, the extremely low NOx emission values are reached by dividing the fuel stream into primary and secondary gas. Thereby, three higher-level reduction mechanisms are caused:
  • Primary gas combustion with a high mixing degree at low temperatures. Simultaneously, a high flame stability is guaranteed
  • Reducing the partial oxygen pressure for the secondary combustion due to the combustion gases of the primary zone
  • Reducing temperature peaks due to the modular secondary combustion within the furnace with high heat extraction
  • During oil operation, the burner uses a technology based on the well-established high-pressure atomising principle in combination with a mixing head geometry that varies according to the capacity. Thus, low NOx values and an economic combustion are reached for the complete control range.

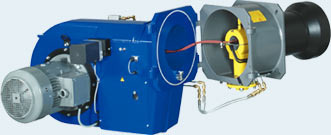

  • Easy swinging out

  • Due to its special construction, the burner casing can be swung out to both directions. The burner itself remains attached to the boiler during maintenance.
  • Easy handling

  • For all burner types, the complete mixing unit including the stabilisation disk and flame head can be easily detached of the burner throat. Neither gas nor oil piping must be disconnected.
